Product features

Large scale dedicated chip, simple circuit, low power consumption, high reliability;

Provides one E1 digital port with a impedance of 75 Ohm /120 Ohm.

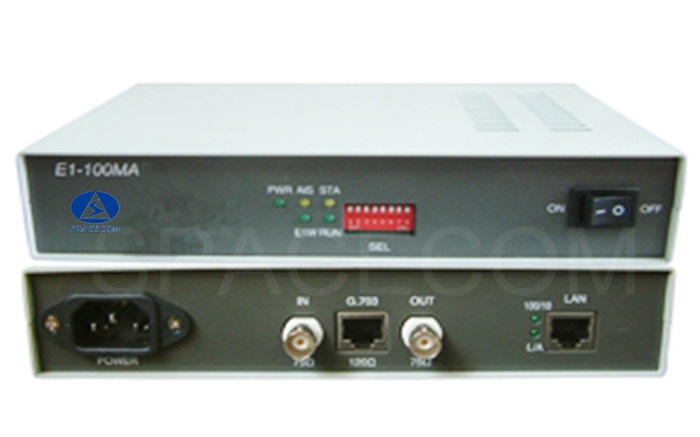

E1-100ma Provides one 10/100 Base-TX port for twisted-pair crossover/direct connection automatic identification.

E1-100MAF Provides one 10/100 Base-TX port and one 100 Base-FX optical Ethernet port.

10/100 Base-TX ports support 10/100M, full-duplex, half-duplex, and automatic negotiation with a fixed rate of 100Mbps for Ethernet optical ports.

The E1-100MAF FX optical Ethernet ports can communicate with similar devices that support the 100Base-FX optical transmission standard.

Supports 802.1p priority.

Supports 802.3x-based flow control.

Supports transparent transmission of VLAN Ethernet frames.

Provides a group of control switches for setting up equipment maintenance tests;

Adapt to a variety of power supply environment (DC-48V, AC220V and AC&DC dual);

Desktop 200×145×45 mm.
