Product features

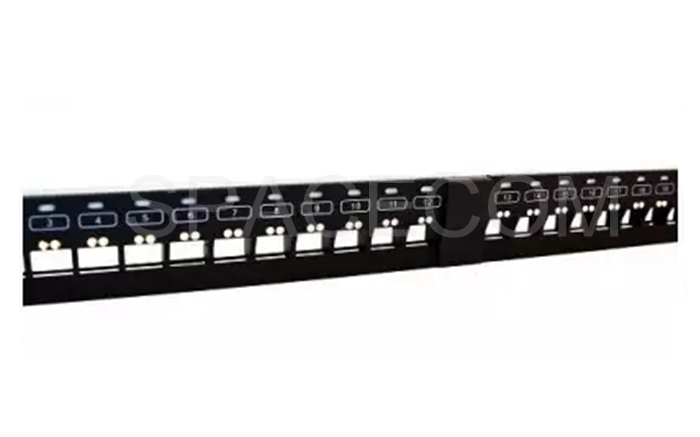

· The 1U module provides 24 RJ45 ports

· Supports Cat5, Cat5e, and Cat6 shielded or unshielded cabling systems

· Supports 24 replaceable RJ45 ports in the 1U space

· The standard 8-pin RJ45 structure with two copper contacts is adopted

· Cable management function is provided in the rear

· Each RJ45 port has an LED indicator above it to guide the jumper

· There is an LED indicator on the right side of the distribution frame to indicate the type of connection of the distribution frame

· Supports the T568A and T568B connection modes

· Connects to the management device in an RJ45 structure

· High speed port scanning

· Self processing ability of data

· Automatic processing of alarm data

· The port LED provides two states

· Distribution frame connection type LED，

   Red: The type is S, indicating that the back end is connected to the Switch.

   Green: The type is C, indicating a data point connected to the back-end.

· Durability: Intelligent distribution frame and module card connection should be metal material, firm and reliable

· Color management: intelligent distribution frame has a variety of colors to choose from

· Appearance: no mounting screws can be seen on the surface of intelligent distribution frame

· Convenience: "ω" type redundant through hole design at the bottom of intelligent distribution frame
