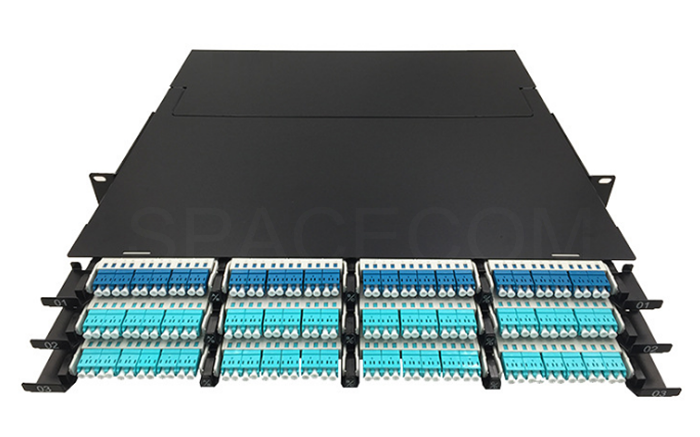

Product features

·Sufficient internal space is reserved, easy to install: simple structure, welding wiring integration welding wiring module, internal structure is clear, clear at a glance, easy to install;

· Flexible design, to meet the deployment requirements of ultra-high density and data rate: each 1U space can support 144 cores (LC interface), 40/100G high-density data center dedicated, improve space utilization, improve data center air flow environment;

· Innovative design, to provide manageability: high density optical fiber cable distribution box appearance, with a modern design, can provide ultra-high density, easy to plug and remove cable management;

· Sliding drawer separation layer of cable distribution box: the box body plays the role of separating the upper and lower cables when the box body is stacked and installed. When it is pushed back to the bottom of the box body, it ensures the convenient access to the connecting point at the back of the module;

· The cabinet adopts ultra-thin design for large capacity and ultra-high density management, which doubles as all 19 "EIA standard cabinets and rack systems.

· Made of high-quality cold-rolled plate, the plate through strict degreasing, pickling, anti-rust phosphating, pure water cleaning, electrostatic spraying, in line with ROHS standards;

· ABS environmental protection melt tray: The high strength ABS engineering plastic injection molding, high strength, full color, thick material, durable, green environmental protection;

· Internal structure design: the adapter and equipment are installed at 30 degrees clamped to ensure the bending curvature of the jumper, and the radius cable and tail fiber have more than 2cm disk storage space;

· Each layer of tray comes with its own line handling ring, providing the best manageability.
