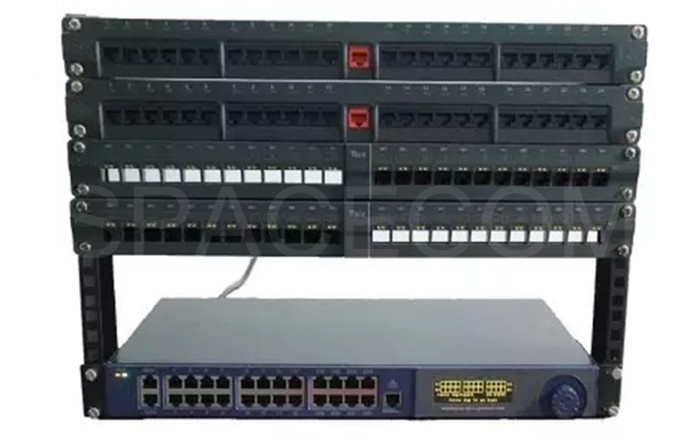

Product features

· Provides 1U24 RJ45 ports

· The port LED can be in either of the following states:

  Slow blinking: Indicates the command state

  Fast blinking: An abnormal alarm is generated

· Intelligent distribution frame connection type (direction) Status:

  Red: Type S, indicating that the connection direction is the device direction (switch)

  Green: Type C, indicating that the connection direction is the terminal port direction (cable)

· The auto-scan function for informing port status is available

· Each RJ45 port is configured with an LED indicator for guiding operations and alarm warning

· There is LED light on the right side of the distribution frame to guide the type and working status of the distribution frame

· Connect the management device through an RJ45 jumper
