Overview

For the pre-terminated high-density MTP/MPO connection system, there will be polarity problems, we should pay attention to in wiring.It is very important to ensure the correct polarity of sending and receiving through the wiring system.

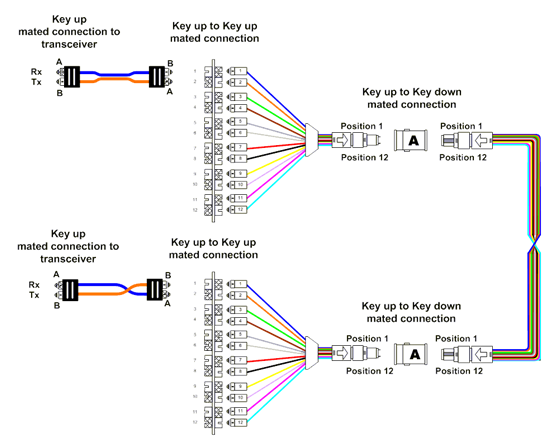

1、A---Duplex signal：

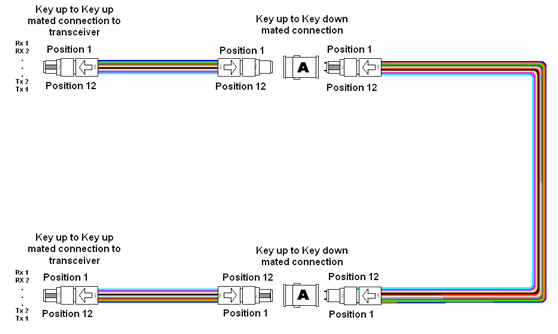

2、A---Parallel signal：

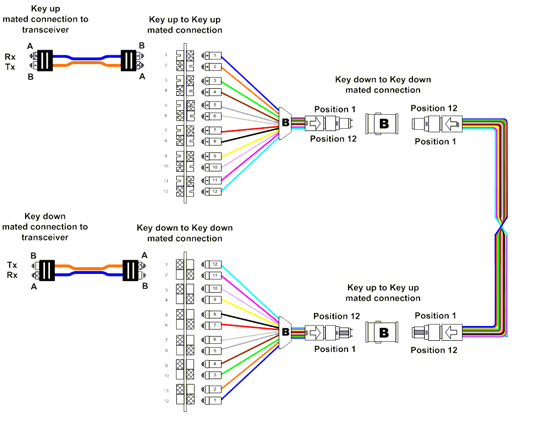

3、B---Duplex signal：

4、B---Parallel signal：
