Product features

· Large capacity: SPCOM600-8MUX/DMUX-S can multiplex 8 service signals of different DWDM wavelengths into a pair of optical fibers, each optical signal rate can be 100G.

· Dual fiber bidirectional: Eight services can be bidirectional transmitted in a pair of optical fibers, improving the utilization rate of optical fibers and saving optical fibers for customers.

· Service transparency: SpCOM600-8MUx /DMUX-S is a physical layer device that can transparently transmit different types of services at different rates.

· No power supply: can be used in passive equipment room, safe and reliable.

· Flexible networking: Applies to point-to-point, point-to-multipoint, chain, and ring networks. It is usually used with the DWDM interface card of our company. It can also be used with some switches and SDH devices that provide DWDM wavelength output.

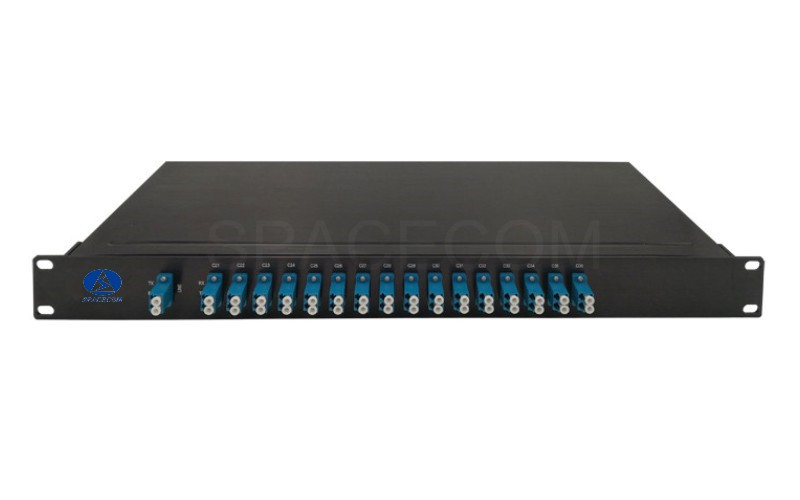

· 19 "rack mounting, high integration

· Low loss, low polarization sensitivity

· No initial configuration, which improves commissioning efficiency

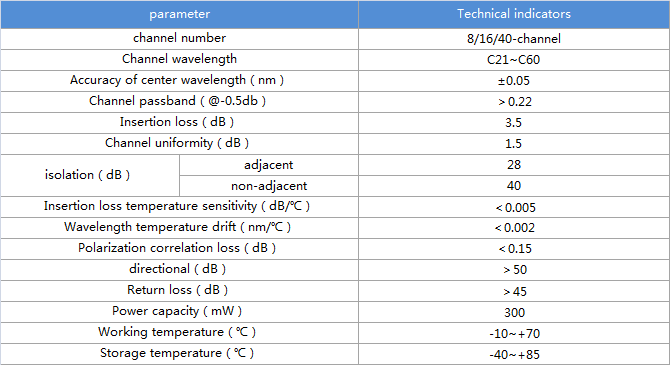

Product specification
