Product features

· Large capacity: SPCOM600-8MUX/DMUX-CWDM can reuse 8 service signals of different CWDM wavelengths into a pair of optical fibers, each optical signal rate can be 10G.

· Dual fiber bidirectional: the bidirectional transmission of 8 services is completed in a pair of optical fibers, which improves the utilization rate of optical fibers and saves optical fibers for customers.

· Service transparency: SPCOM600-8MUx/DMUx-CWDM is a physical layer device, which can realize transparent transmission of different types of services at different rates.

· No power supply: can be used in passive equipment room, safe and reliable.

· Flexible networking: can be applied to point-to-point, point-to-multipoint, chain and ring networks. It is usually used with the CWDM interface card of our company. It can also be used with some switches and SDH devices that provide CWDM wavelength output.

· 19 "rack mounting, high integration

· Low loss, low polarization sensitivity

· No initial configuration, improving commissioning efficiency

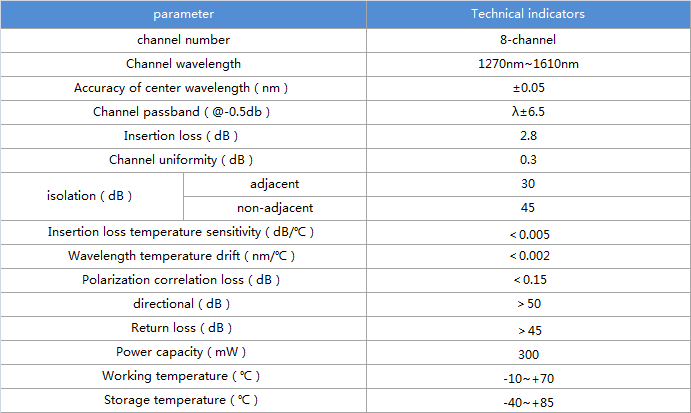

Product specification
