Product description

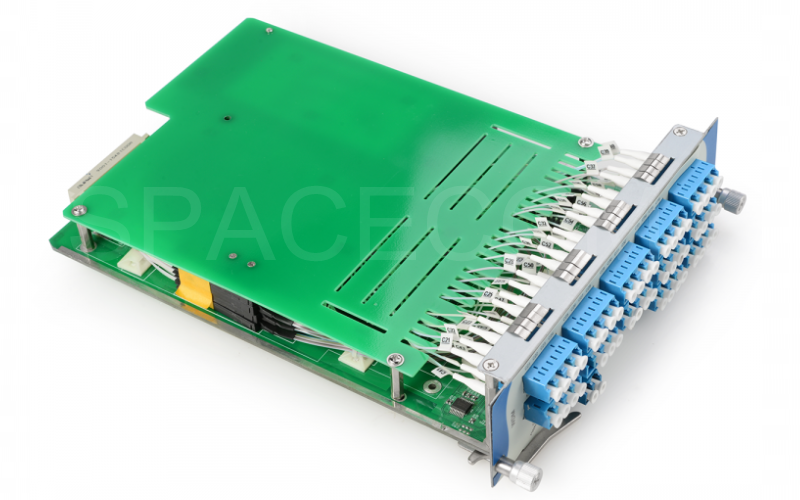

    Beijing Spacecom Co., LTD.,Athermal AWG is a high performance DWDM mux/demux product based on silica-on-silicon planar technology (AWG or arrayed waveguide gratings). It has a unique athermal packaging design that achieves temperature compensation passively with no requirement on electrical control. It is a completely passive module that has high stability and reliability.

Product features

· 40/48 Channel 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX & DEMUX)

· Plug’n play: requires no configuration

· Green product: completely passive, needs no power and no cooling

· Uniform insertion loss variation over the 40-channels – less than 1dB (typical 0.6dB)per MUX or DEMUX

· Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from Fiberroad and other third parties

· High reliability

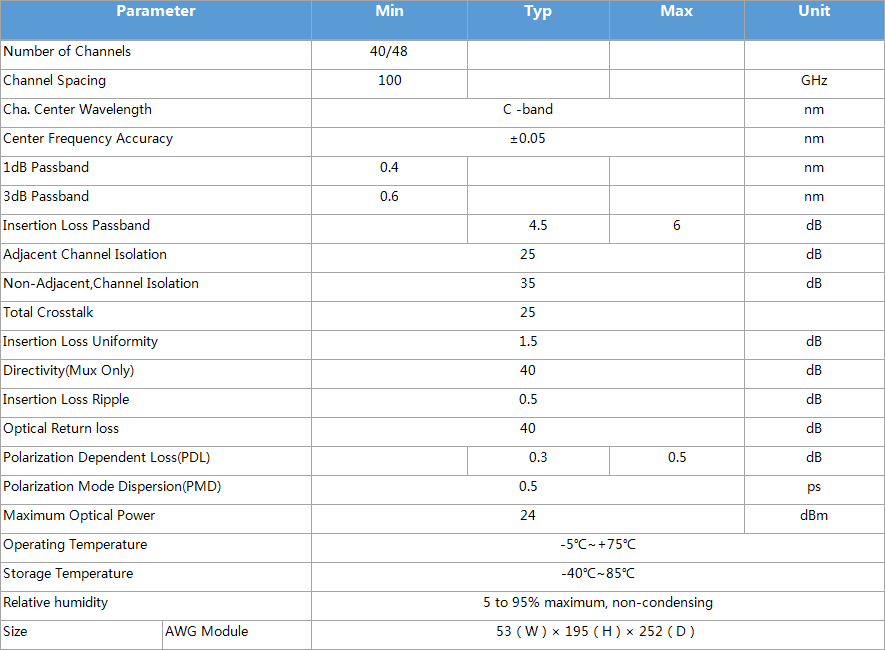

Product specification
