Product description

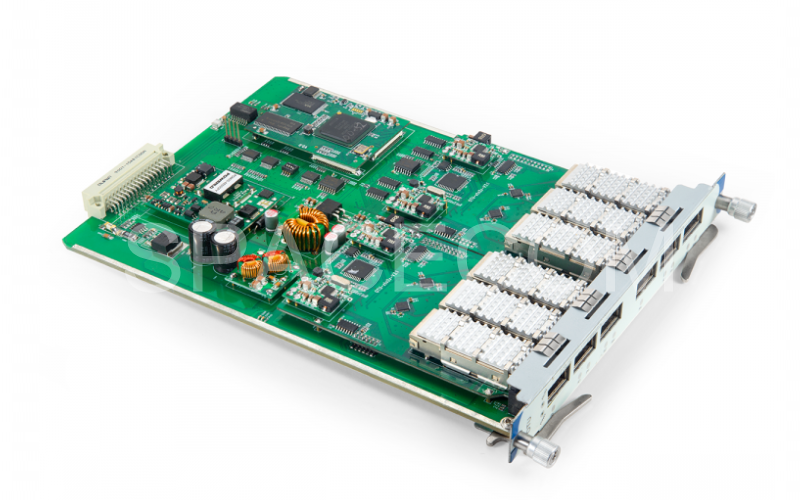

    Beijing Spacecom Co., LTD.,10G Transponder with OLP is a compact size 10G Transponder card with 1+1 OLP (optical channel protection) function for automatic protection of a particularly important service channel, enabling a higher availability and reliability for mission critical customers. The optical signals are transmitted to primary and secondary path simultaneously. The receiving end selects primary path to receive optical signals when the primary link is up and switches to secondary path if primary link goes down. Each one card can realize two 10G Link with 6 XFP/SFP+ port selected by customers.

Product features

· Support 1+1 protection mode

· Supports automatic switching and manual switching

· Wide data rate of 8.5G~11.3Gbps support:
  10GE
  10G SONET/SDH
  8/10Gbps Fiber Channel
  Up to 2 data channels

· Support 3R (Reshaping, Retiming, Reamplify) function

· Support wavelength tunable optical module

· Support SNMP-based network management

· Support CLI, web, telnet and NMS(network management system)

· Graded management mode (common user, super user or administrator)

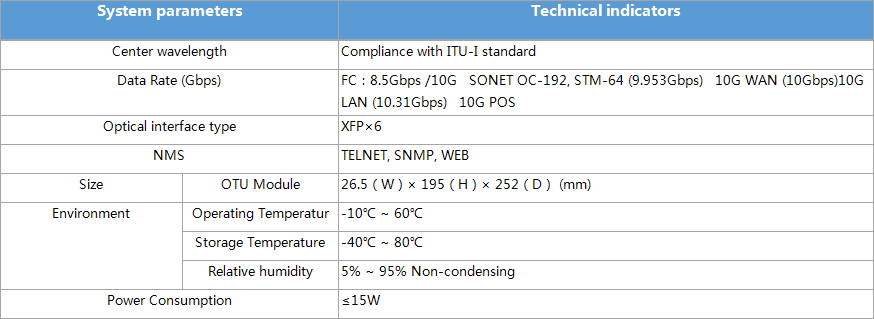

Product specification
