Product description

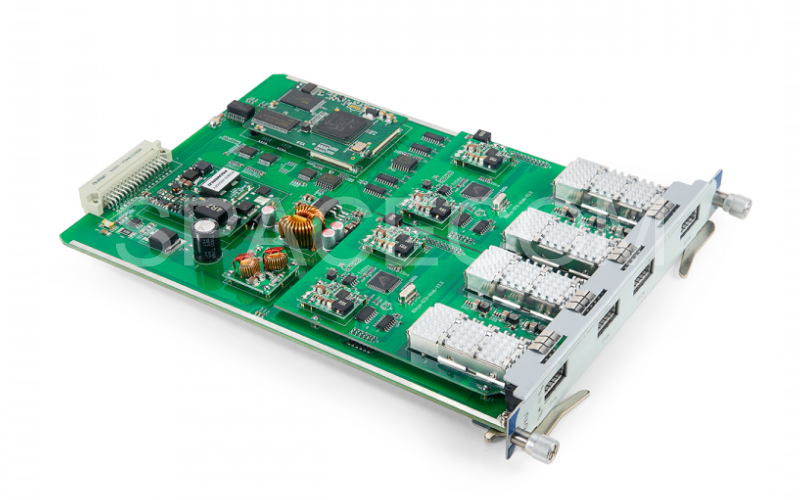

   Beijing Spacecom Co., LTD.,10G Transponder 2 Channels is a 2-channel 10G service access card. Its main function is to finish the 3R regeneration of any 2-channel signals under any protocol within the access rate of 1.25 Gbit/s~11.3 Gbit/s, and then convert them into optical signals of the standard DWDM or CWDM wavelength, so that the MUX unit can multiplex the optical signals with different wavelengths and also achieve the reverse process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 10G or below.

Product features

· Wide range of applications:
  Signal repeating
  Wavelength Conversion
  WDM/OADM

· Wide data rate of 8.5G~11.3Gbps support:
  10GE
  10G SONET/SDH
  8/10Gbps Fiber Channel

· Up to 2 data channels (with 4 XFP fiber modules)

· Support wavelength tunable optical module

· Support LFP(link fault pass through)

· Support SNMP-based network management

· Support CLI, web, telnet and NMS(network management system)

· Graded management mode (common user, super user or administrator)

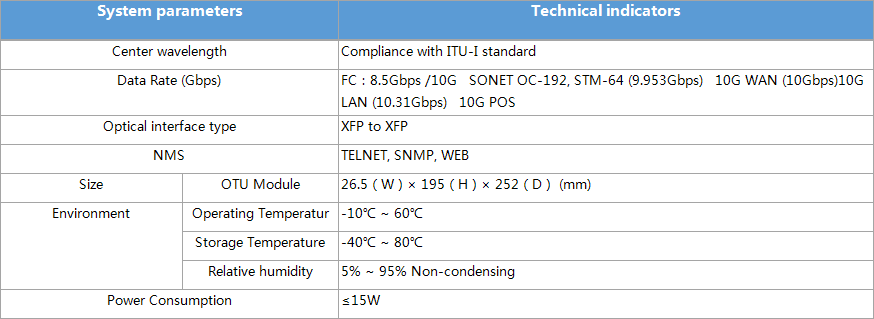

Product specification
