Product Features

· Up to 10.5 Gb/s bi-directional data links

· Compliant with IEEE 802.3ae

· Compliant with SFF-8431

· Hot-pluggable SFP+ footprint

· 850nm VCSEL laser transmitter and PIN receiver

· Built-in digital diagnostic functions

· Up to 300m on OM3 MMF

· Low power consumption (Module work consumption <1W)

· Single power supply 3.3V

· RoHS Compliant

· Operating temperature range（Case Temperature）：0◦C to 70◦C

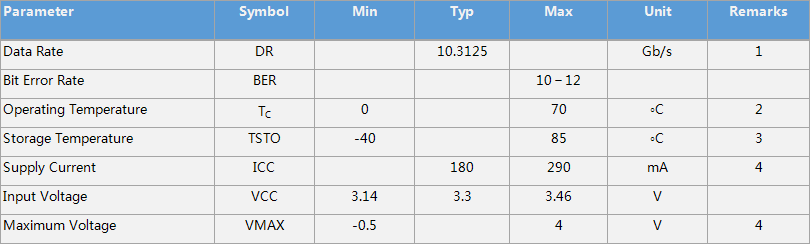

General Specifications
