Product Features

· Operating data rate support 25.2Gbps to 28.1Gbps

· Compliant with IEEE 802.3

· Compliant with FC-PI-6

· Compliant with SFF-8402

· Compliant with SFF-8419

· Compliant with SFF-8432

· Compliant with SFF-8472

· Hot-pluggable SFP+ footprint

· 850nm VCSEL laser transmitter and PIN receiver

· Built-in digital diagnostic functions

· Up to 100m in length

· RoHS6 Compliant

· Single power supply 3.3V

· Low power consumption (module working power <0.5W@Single-end)

· Operating temperature range: 0◦C to70◦C(case temperature)

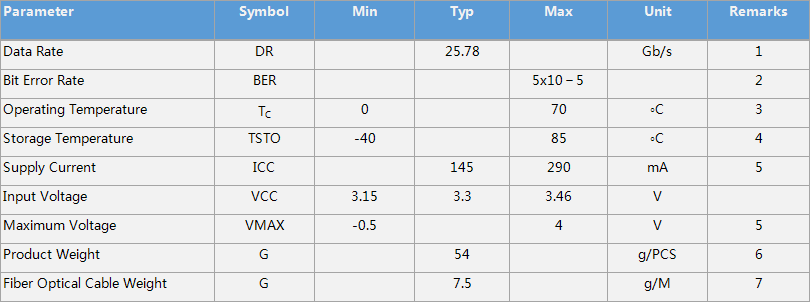

General Specifications
