Product description

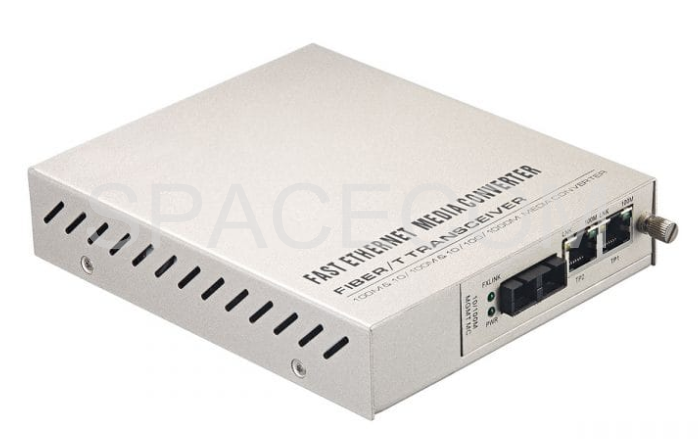

   Beijing Spacecom Co., LTD., Managed Fast Ethernet Media Converter is an IEEE 802.3ah OAM compliant copper to fiber Fast Ethernet solution designed to make conversion between 10/100Base-TX and 100Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, it can be managed by a friendly Web Smart user interface via any web browser.

Product features

· Supporting 10/100M, full/half duplex autosensing

· Supporting 1*9 transceiver and SFP transceiver

· Supporting IEEE802.3 ,IEEE802.3X

· Supporting auto-MDI/MDI

· Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through mode

· Rate Limit function, 32Kbps

· Supporting Loopback, precisely locating the failure, convenient for link test

· Supporting LFP, quickly locates the failure

· Supporting remote power off alarming

· Economical management function within bandwidth

· Support SFP DMI(Diagnostic Monitoring Interface) function

· The status of 10/100M media converters with IP113A/C/F/M chipsets can be monitored and queried at the same           chassis system

· Supporting hot plug

· Supporting Remote management

· Easy installation with complete LED indicators for working situation

· With powerful network management function, supporting WEB and SNMP

· Supporting 2U chassis (16 slots) and standalone use
